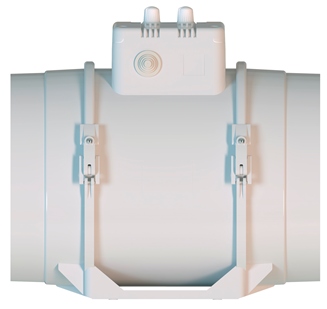

Series Vents TT PRO

Series Vents TT PRO - For round ducts - Inline fans
Mixed-flow inline fans
  • Impeller type: Mixed-flow


The VENTS TT PRO series fans are distinguished by their versatility. They are compact and provide an air flow of up to 2050 m³/h for round ducts with diameters ranging from 100 to 315 mm.
Application
Depending on the installation direction, VENTS TT PRO mixed-flow inline fans can operate as either supply or exhaust fans. Fans of this series are used for any commercial and industrial premises: hotels, stores, warehouses, fitness centers, etc.

Offices

Libraries

Cafés, hotels, and restaurants

Production areas, warehouses, and private workshops

Design

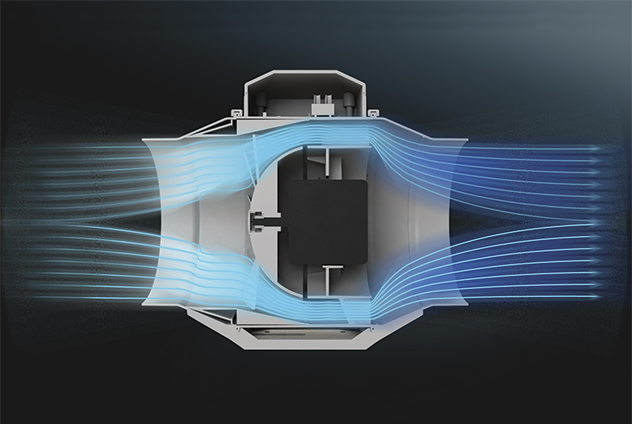

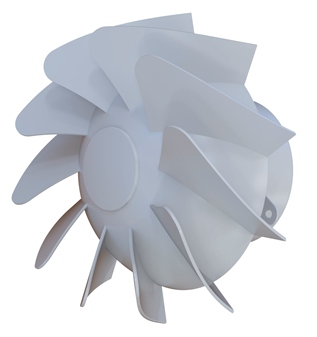

Optimized impeller

Thanks to the improved impeller shape and enhanced aerodynamics, TT PRO fans deliver high air flow at minimal energy consumption and low noise level.

The casing

The casing is made of high-quality, durable, low-flammability ABS plastic, which is also resistant to mechanical damage.

Motor

High-efficiency two-speed motor

The single-phase two-speed motor combines reliable operation, optimal performance, and low power consumption.

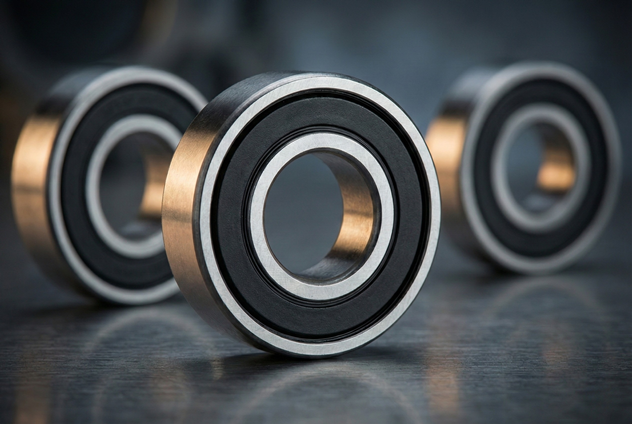

Rolling bearings

TT PRO series fans are designed for long-term and reliable operation. They are equipped with rolling bearings that can withstand up to 40,000 hours of continuous operation and feature built-in thermal overload protection

Mounting and maintenance

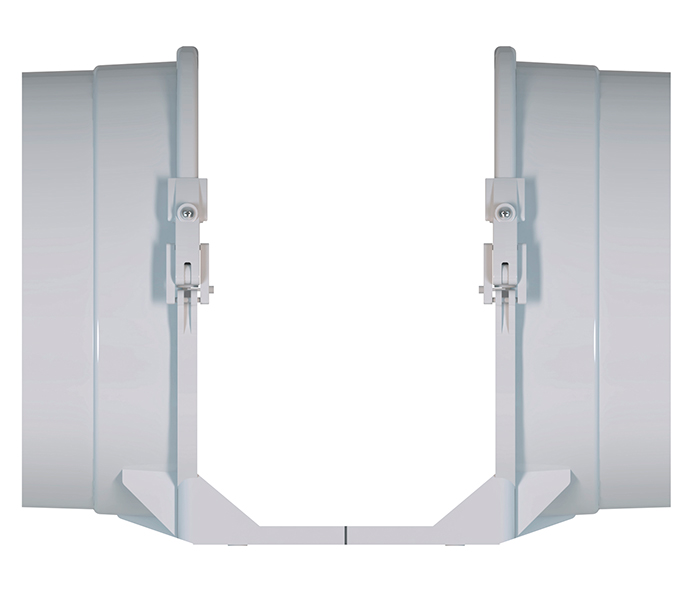

Easy maintenance

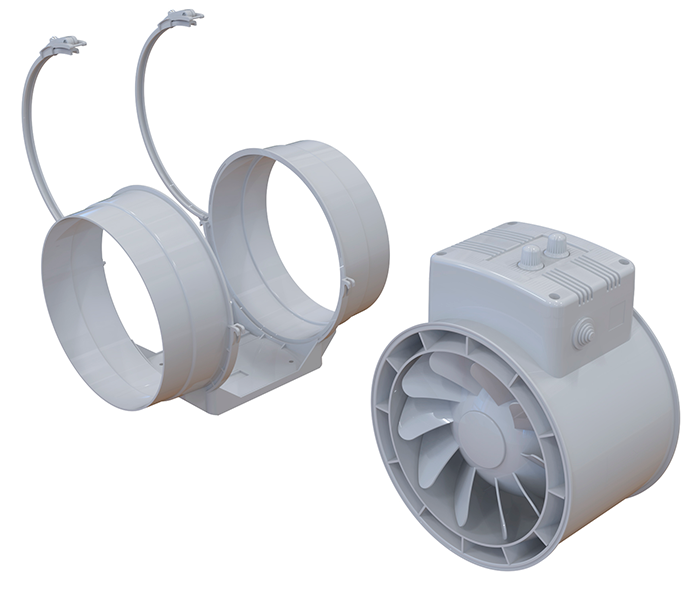

The removable central unit with the motor, impeller, and terminal box ensures simple and convenient fan maintenance. There is no need to disassemble and remove the entire fan—simply pull the central unit out of the casing and perform maintenance.

Flexible mounting

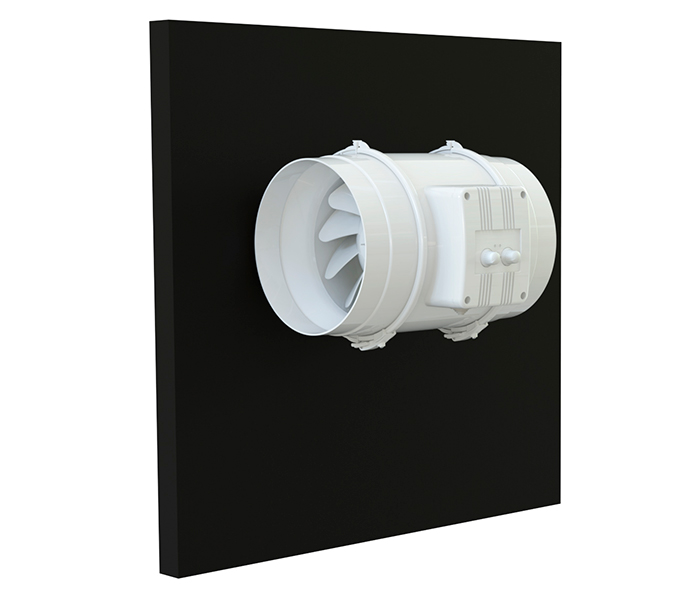

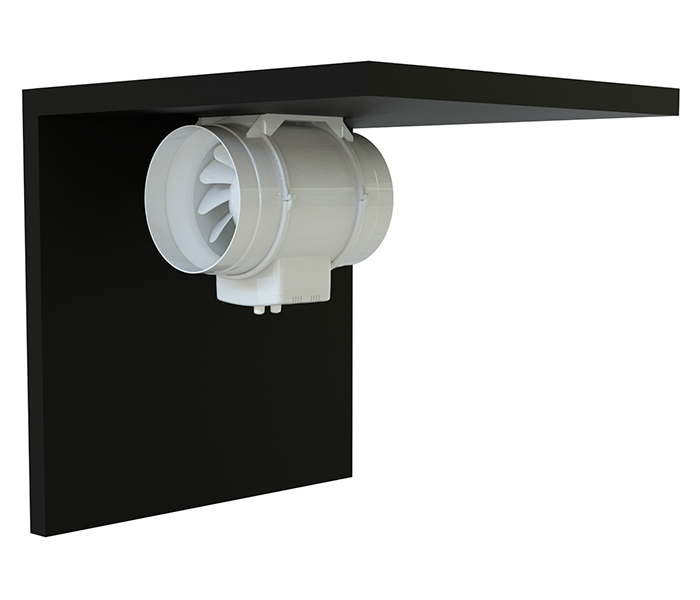

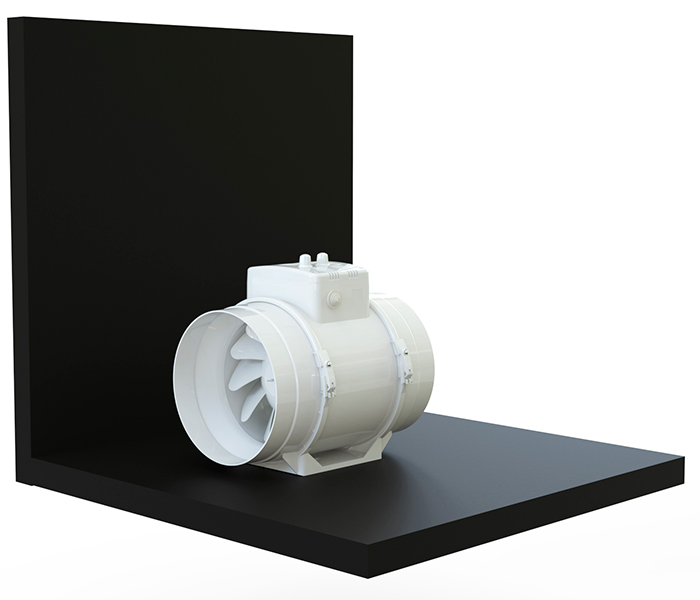

The fans are suitable for floor, wall, and suspended mounting.

Serial or parallel installation is also possible:

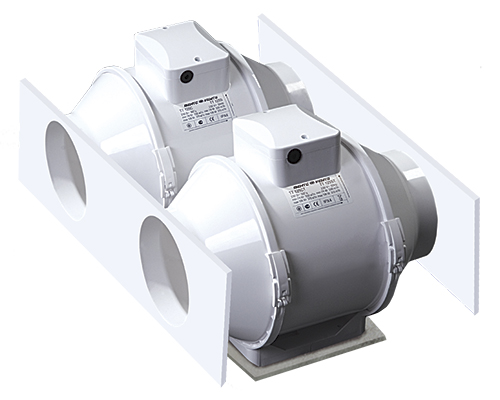

Parallel installation allows you to increase airflow.

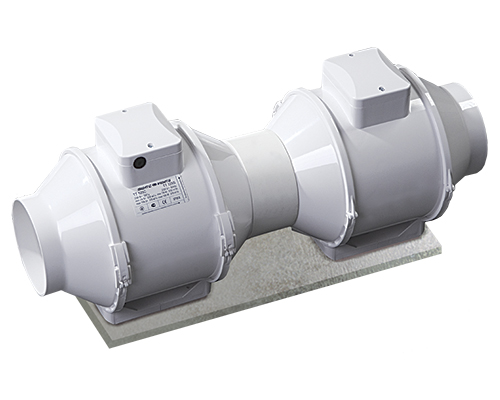

Serial installation allows you to increase air pressure

Available options for the VENTS TT PRO series
A wide range of options allows you to find the perfect solution for any ventilation need.
NameDescription
TT PRO Tadjustable timer from 2 to 30 minutes.
TT PRO Uspeed controller with an electronic thermostat and a temperature sensor integrated inside an air duct. Temperaturebased operation logic.
TT PRO Unspeed controller with an electronic thermostat and a temperature sensor fixed on a 4 m cable. Temperature-based operation logic.
TT PRO U1speed controller with an electronic thermostat and a temperature sensor integrated inside an air duct. Timer-based operation logic.
TT PRO U1nspeed controller with an electronic thermostat and a temperature sensor fixed on a 4 m cable. Timer-based operation logic.
TT PRO U2nspeed controller with an electronic thermostat and a temperature sensor fixed on a 4 m cable. Temperaturebased switching on/off.
TT PRO R1power cord with mains plug.
TT PRO Vthreeposition speed switch (for TT PRO series fans only).
TT PRO Pbuilt-in smooth speed controller.
New, improved series of mixed-flow fans – VENTS BOOST
  • High air flow, low power consumption, and low noise, combined with easy installation and maintenance, make BOOST one of the leaders in its category.
  • Designed for air ducts ranging from 100 to 400 mm in diameter.
  • Available models feature three-speed AC motors and energy-efficient EC motors.
Lineup Vents TT PRO Connected air duct size, mm Phases Rated power, W Maximum airflow, m³/h Temperature sensor Timer Number of speeds
Vents TT PRO 100 Vents TT PRO 100
100 1 25 245 2
Vents TT PRO 125 Vents TT PRO 125
125 1 29 350 2
Vents TT PRO 150 Vents TT PRO 150
150 1 50 565 2
Vents TT PRO 160 Vents TT PRO 160
160 1 50 565 2
Vents TT PRO 200 Vents TT PRO 200
200 1 108 1040 2
Vents TT PRO 250 Vents TT PRO 250
250 1 177 1400 2
Vents TT PRO 315 Vents TT PRO 315
315 1 320 2050 2
Datasheet
"VENTS TT PRO" product description 07-2025
1.67 Mb
Manual
"VENTS TT PRO" user's manual 03-2026 (V77EN-05)
1.69 Mb
