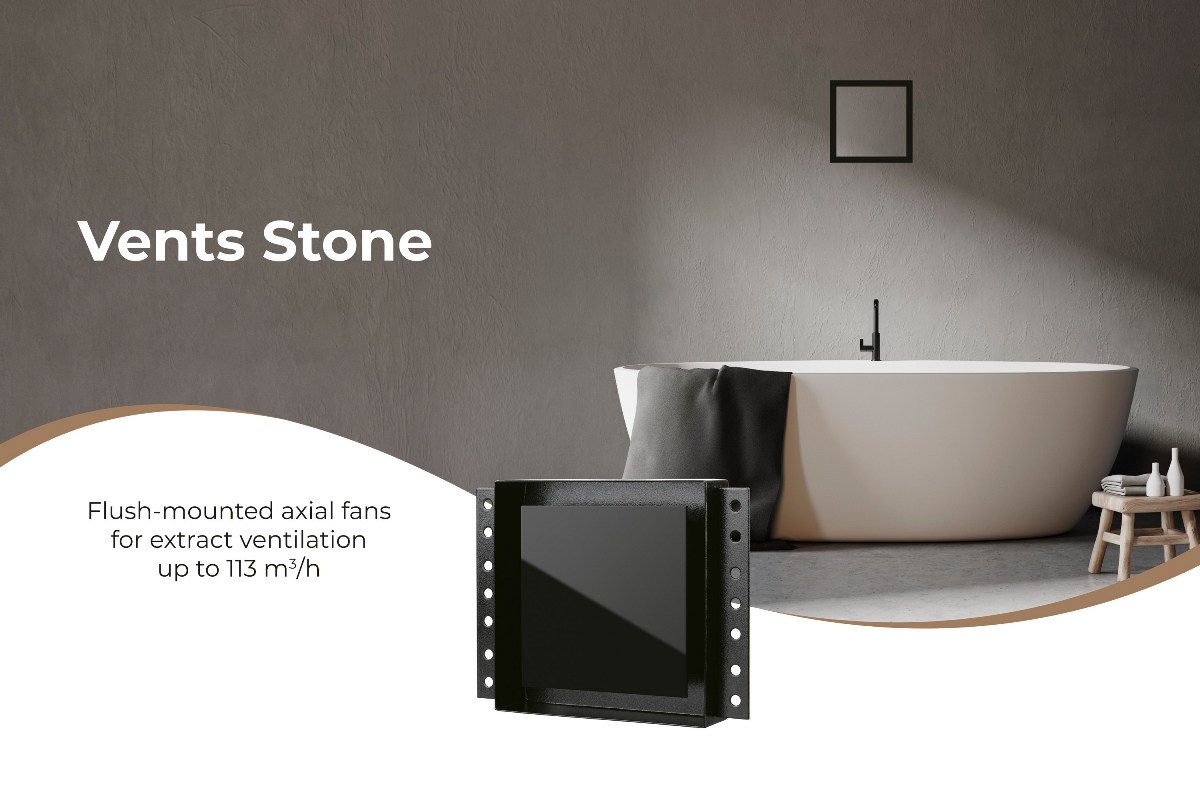

Series Vents Stone

Flush-mounted axial fans for extract ventilation

Impeller type: Axial

Advantages of Vents Stone fans

1. Easy maintenance.

2. Optional turn-off delay timer and humidity sensor.

3. The fan panel can be decorated with ceramic tiles or other materials with adjustable thickness.

4. Modular design allows for fun removal when the casing is mounted in a wall.

5. It is possible to install a check valve to prevent drafts and heat loss.

6. Sturdy metal structure with reliable fasteners.

Modifications and options

Stone К – fan equipped with a back valve to prevent backdraft.

Stone L – the motor is equipped with ball bearings designed to increase the service life (ca. 40 000 working hours). The fan can be installed at any angle; The bearings are maintenance-free and filled with grease for the whole service life.

Stone turbo – high-performance motor.

Stone T – equipped with a regulated timer with the operating time from 2 to 30 minutes.

Stone TH – equipped with a timer with the operating time from 2 to 30 minutes and a humidity sensor with the threshold value from 60 to 90 %.

Application

Colour modifications

Stone white

Stone beige

Stone grey

Installation example

Lineup Vents Stone	Connected air duct size, mm	Rated power, W	Maximum airflow, m³/h	Sound pressure level LpA at 3 m, dB(A)	Timer
Vents 100 Stone	100	14	90	33
Vents 100 Stone K	100	14	90	33
Vents 100 Stone L	100	14	90	33
Vents 100 Stone T	100	14	90	33	Turn off timer
Vents 100 Stone TH	100	14	90	33	Turn off timer
Vents 100 Stone turbo		16	113	37
Vents 100 Stone K turbo		16	113	37
Vents 100 Stone L turbo		16	113	37
Vents 100 Stone T turbo		16	113	37	Turn off timer
Vents 100 Stone TH turbo		16	113	37	Turn off timer
